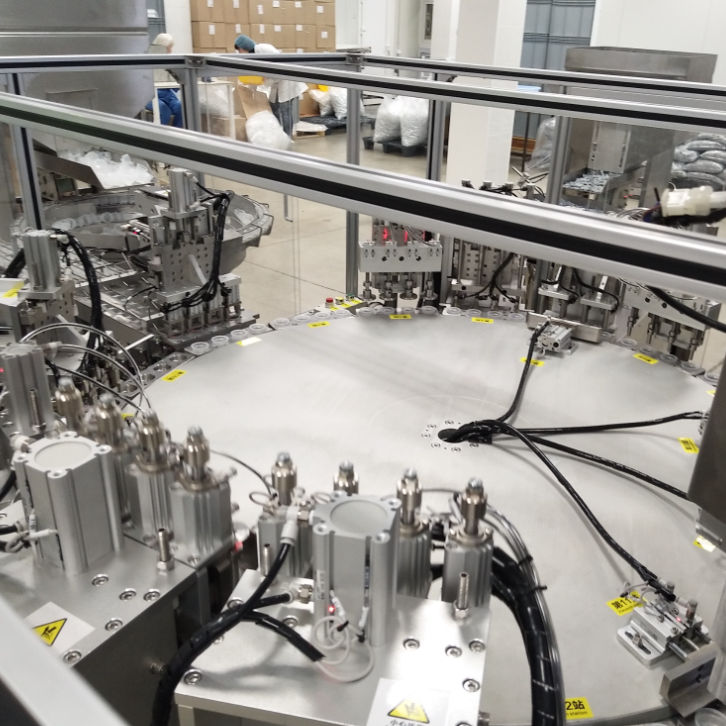

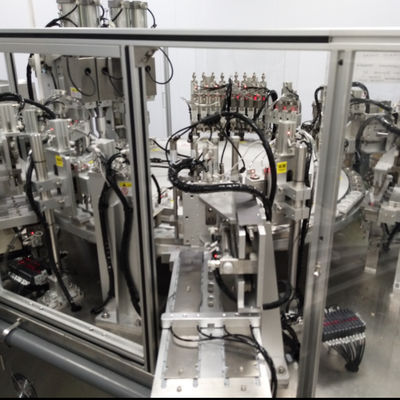

Automatic Euro Cap Assembly Machine 14000-18000pcs/h 50Hz

Nombre De La Marca:	SENCAN
Número De Modelo:	SC-TP-782
Cantidad Mínima De Pedido:	1 set
Precio:	Negotiate the price according actual situation
Condiciones De Pago:	T/T, L/C
Capacidad De Suministro:	3-20 sets

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

China.

Certificación:

CE, ISO9001

Capacidad:

14000-18000 piezas/h

Modo de funcionamiento:

Automático

Eficiencia de producción:

Alto

Peso:

500 kg

Operador:

Simple o doble

Frecuencia del producto:

50Hz

Tipo de ensamblaje:

Automático

Capacidad de ensamblaje:

4500-12000 por hora

Rango de diámetro de la tapa:

10-50 milímetros

Interfaz operativa:

Pantalla táctil

Modelo:

Máquina de ensamblaje de tapa

Modo de operación:

Automático

Características:

Alta eficiencia, fácil de operar

Mecanismo:

Servo

Productos aplicables:

El euro tiene un límite máximo

Detalles de empaquetado:

Estuche de madera

Resaltar:

Automatic Euro Cap Assembly Machine 14000pcs/h

Euro Cap Assembly Machine 50Hz

High-speed Euro Cap Assembly Machine

Descripción del producto

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
