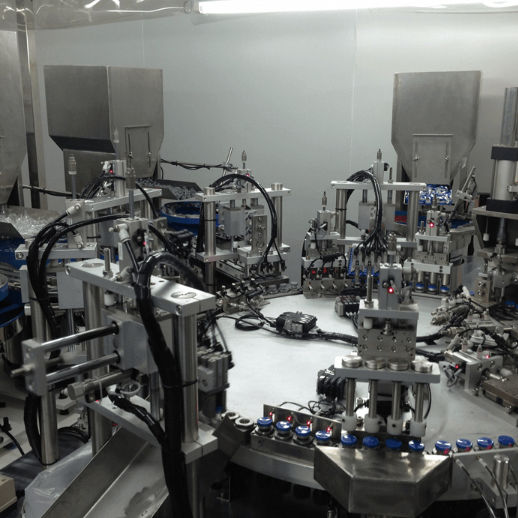

Automatic Cap Lining Machine 380V for Plastic & Metal Caps

Nombre De La Marca:	SENCAN
Número De Modelo:	SC-TP-784
Cantidad Mínima De Pedido:	1 set
Precio:	Negotiate the price according to actual situation
Condiciones De Pago:	T/T, L/C
Capacidad De Suministro:	3-20 sets

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

China.

Certificación:

CE, ISO9001

Características del producto:

Revestimiento automático de tapa, velocidad ajustable, fácil de operar

Material adecuado para el tapón:

Plastico, aluminio y metal

Sistema de control:

Control del PLC

aplicación del producto:

Bebida, farmacéutica, cosmética y otras industrias

Tipo de producto:

Máquina para hacer tapas

Tarifa calificada:

(requisito del 99%)

Operador:

1 juego por persona

Ritmo:

Cadena de producción del flujo

Grado automático:

Automático

Voltaje del producto:

380V

Operación:

Automático

Tipo de embalaje:

Estuche de madera

Detalles de empaquetado:

Estuche de madera

Resaltar:

380V automatic cap lining machine

plastic cap lining machine

metal cap lining machine

Descripción del producto

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
