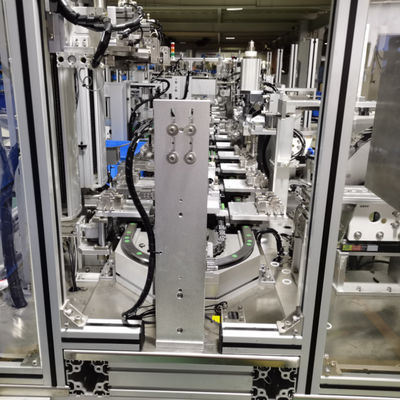

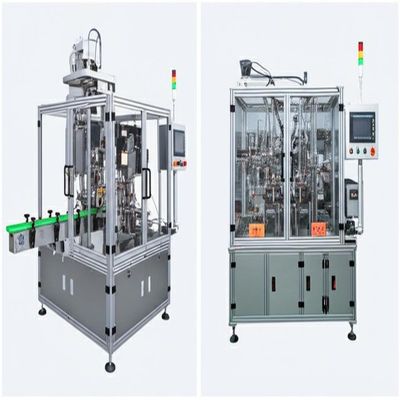

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Nombre De La Marca:	SENCAN
Número De Modelo:	SC-TP-798
Cantidad Mínima De Pedido:	1 set
Precio:	Negotiate price according to actual situation
Condiciones De Pago:	T/T, L/C
Capacidad De Suministro:	2-20 juegos

Información detallada

Lugar de origen:

PORCELANA

Certificación:

CE, ISO9001

Voltaje:

220V

Mantenimiento:

Fácil

Interfaz de operación:

Pantalla táctil

Método de alimentación:

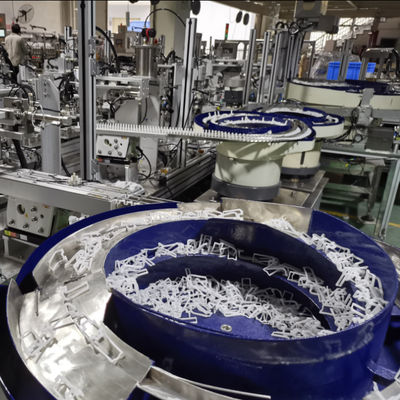

Disco vibratorio

Detección de error:

Automático

Método de operación:

Control de pantalla táctil

Certificación de productos:

CE, ISO

Consumo de aire:

0.5 m3/min

Nivel de automatización:

Totalmente automatizado

Capacidad:

De acuerdo con el requisito del cliente

Detalles de empaquetado:

Estuche de madera

Resaltar:

Descripción del producto

Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly

Key Features

Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
Independent workstations with secondary positioning to achieve over 98% product qualification rate
Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
Automatic silicone oil application during tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce operational noise
Integrated quality detection at each assembly stage to eliminate defective products
PLC control system with touch screen interface for easy operation

Technical Specifications

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 4kw/hr
Dimensions	Variable based on production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
