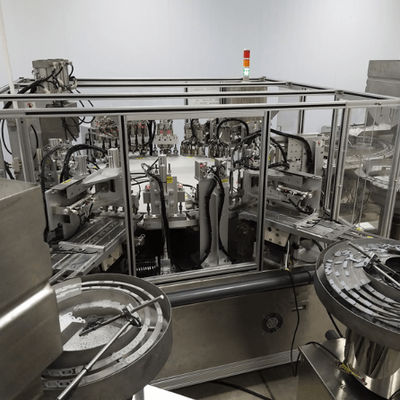

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Nombre De La Marca:	SENCAN
Número De Modelo:	SC-TP-815
Cantidad Mínima De Pedido:	1 juego
Precio:	Negotiate price according to actual situation
Condiciones De Pago:	T/T, L/C
Capacidad De Suministro:	2 a 10 SET

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE, ISO9001

Capacidad de ensamblaje:

4500-12000 por hora

Presión de aire:

0.6 MPa

Tipo:

Automático

Velocidad:

Ajustable

Poder principal:

Servo

Conducir:

Motor de servomotor

Tipo de botella:

Botellas de plástico

Productos aplicables:

Capuchón doblemente plegable

Medidor de presión de aire:

SMC

Control:

SOCIEDAD ANÓNIMA

Mecanismo:

Servo

Modo de operación:

Automático

Material del producto:

Metal/plástico

Detalles de empaquetado:

Caja de madera

Resaltar:

Descripción del producto

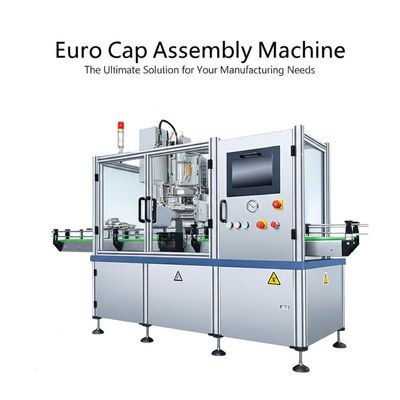

Euro Cap Assembly Machine - The Ultimate Solution for Your Manufacturing Needs

Product Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
Independent driving source at each workstation for simplified maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated check function after each assembly step to eliminate defective products
User-friendly PLC control system with human-machine interface operation
Precision servo motor + indexing drive system ensures high assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500-8,500 pieces/hour (customizable)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Varies according to production speed requirements
Weight	Approximately 2,000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
