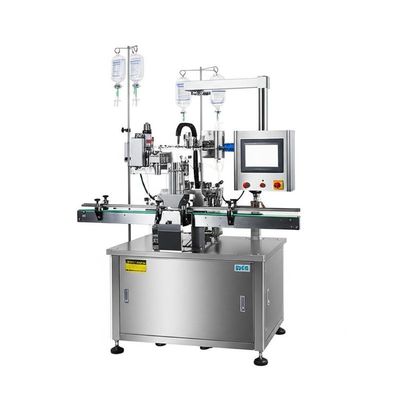

Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

Nombre De La Marca:	SENCAN
Número De Modelo:	SC-TP-818
Cantidad Mínima De Pedido:	1 juego
Precio:	Negotiate price according to actual situation
Condiciones De Pago:	T/T, L/C
Capacidad De Suministro:	2-20 juegos

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE, ISO9001

Capacidad de producto:

4000-12000 tapas por hora

Modelo:

Máquina de ensamblaje de tapa

Grado de automatización:

Automático

Marca de productos:

Euro

Velocidad de funcionamiento:

Ajustable

Fuerza activa:

Motor de servicio o cilindro

Tasa de operación:

98%

Medidor de presión de aire:

SMC

Tipo de tapa:

Capuchón para perfusión

Detalles de empaquetado:

Caja de madera

Resaltar:

Descripción del producto

IV Infusion Peel-foil Cap Assembly Machine

Key Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for product protection
Automatic foil cutting and welding process
Integrated quality check function after each assembly step to eliminate defects
User-friendly PLC control system with human-machine interface operation
Precision assembly with servo motor + indexing drive power system
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
